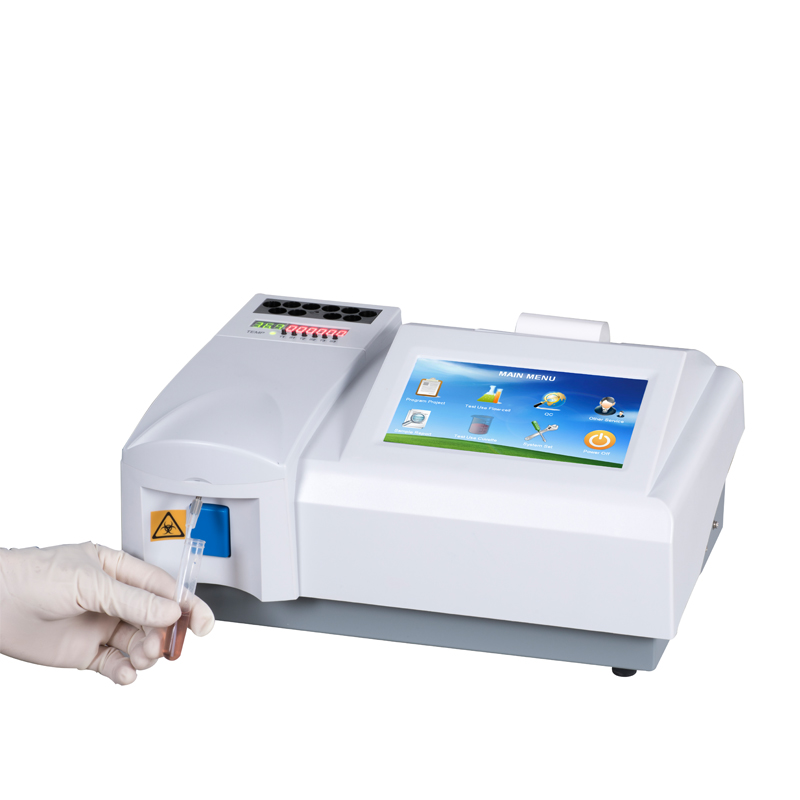

VC-3002B1

Chemistry Analyzer

product description

Features

  1. 10 incubators and three timers
  2. 7 inch Color LCD , Touch screen
  3. Flow cell and Cuvette test mode compatible
  4. Real time curve showing
  5. 7wavelength , 90 test item pre-programmed
  6. Memory for 10,000 sample results
  7. Light source hibernate function making lamp life longer
  8. RS232 interface, PC connecting



Technical Specifications

PARAMETERS

SPECIFICATIONS

Test mode

Kinetic, End point, Two point, Absorbance

Wavelength

7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position

Wavelength precision

±2 nm, width ≤ 10nm

Absorbance range

0~4.500 Abs

Absorbance precision

outside 0.0001 Abs , inside 0.00001 Abs

carry over

< 1%

Repeatability CV

< 1%

Incubator

37°C、30°C、25°C、Precision : ±0.1°C

Sample volume

0~3000 uL (≥500uL recommend)

Data Storage

≥10000

Quality control curve

X-bar,SD、CV%、L-J quality control curve for every test item

Flow cell

32 uL quartz glass, 10 mm

Lamp

Philips 6V 10W Halogen Lamp with long life

Screen

7 inch color LCD

CPU

ARM series high speed micro CPU

Printer

Internal thermal sensitive printer

Interface

RS-232

Work Environment

Temperature 0°C ~ 40°C, Humidity: ≤80%

Power supply

100~240VAC,50-60Hz,100VA

Dimension

340(L)*270(W)*160(H)

Weight

5 kg



Usual test list

Liver function

ALT  AST  ALP  T-BIL  D-BIL  TP  ALB  TTT  CHE  Nh3

Renal function

BUN  CRE  UA  URE  CO2-CP  γ-GT

Lipids

T-CHO  TG  HDL-C  LDL-C

Cardiac function

CK  CK-MB  LDH

Immune proteins

IGA  IGG  IGM  C3

Others

GLU  HGB  AMS
