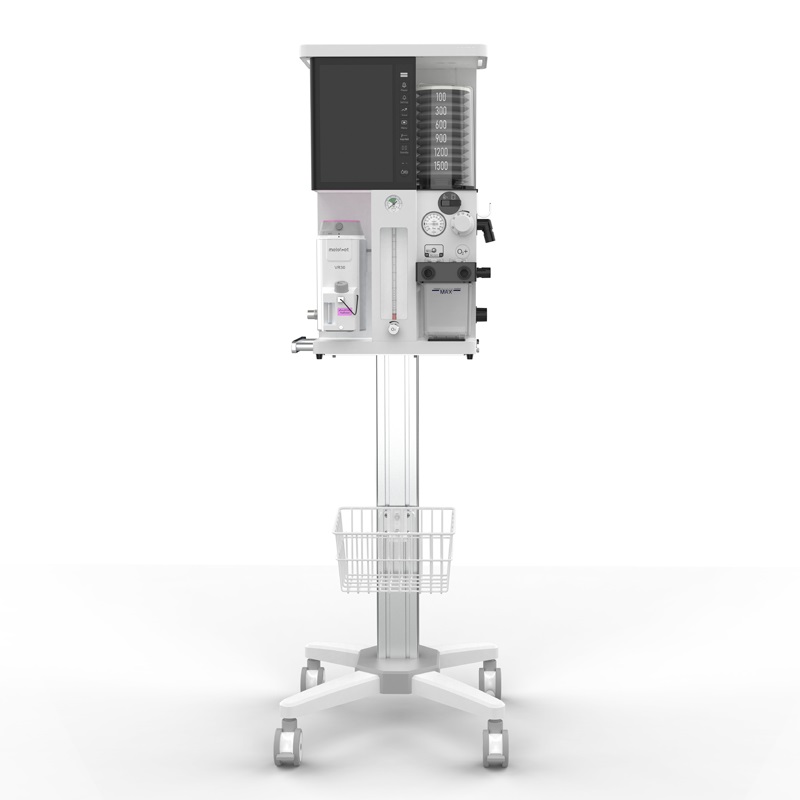

V-M30
Anesthesia Machine
Product Categories
-
Animal Monitoring & Life Support
-
Operating Theatre Equipment
-
Animal Diagnostic Laboratory
- Automatic Integrated Gene Detection System
- Hematology Analyzer
- Elisa Reader
- Chemistry Analyzer
- Blood Gas Electrolyte Analyzer
- Urine Analyzer
- Biological Safety Cabinet
- Biological Microscope
- Centrifuge
- Medical Pharmacy Refrigerator
- Blood Bank Refrigerator
- Combined Medical Refrigerator and Freezer
- Medical Freezer
- Laboratory Incubator
- Dry Oven
- Pet Rapid Test
-
Sterilizer (Autoclave)
-
Medical Imaging
-
Clinical Examination
-
Dental Equipment
-
Pet Grooming
Contact
Add to List
product description
Features
-Application:0.5~150KGS animals
-Multi-applications:rebreathing anesthesia and non-rebreathing anesthesia;
-Independent non-rebreathing circuit:all-metal ACGO switch and independent ACGO port to ensure one-step switching between rebreathing anesthesia and non-rebreathing anesthesia.
-Oxygen pressure security:oxygen pressure gauge, oxygen pressure status is clear; built-in safety valve ensures product safety.
-Airway pressure management:pre-calibrated APL valve, set airway pressure level in one step; APL valve button closes the airway by one-step; vertical pressure airway gauge, airway pressure status is under control.
-Large capacity CO2 absorber canister:Lever mechanism, locking and unlocking by only one-step;1400ml super large capacity CO2 absorber canister.
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Gas Circuit System |
|
|
Source gas |
Oxygen |
|
Gas pressure range |
280-600kpa/40-87psi |
|
Port type |
NIST/DISS |
|
Gas pressure gauge |
0-1Mpa/0-140psi |
|
Air source safety valve |
Built in |
|
Flow meter adjustment |
0-4L/min (Single tube oxygen flowmeter) |
|
Vaporizer tank base |
Single tank position, Selectatec |
|
Respiratory System Specifications |
|
|
Airway pressure |
-20cmH2O~100cmH2O |
|
APL valve |
Adjustment range: 0 ~ 70cmh2o, with one key closing |
|
CO2 Absorber Canister |
Volume 1400ml |
|
Vaporizer |
|
|
Vaporizer Types (Dosing method) |
Isoflurane (Pour-Fill, Key-Fill, Easy-Fill) |
|
Enflurane (Pour-Fill, Key-Fill, Easy-Fill) |
|
|
Sevoflurane (Pour-Fill, Key-Fill, Easy-Fill, Quick-Fill) |
|
|
Weight |
Empty state:4kg±0.3kg |
|
Full drug state:5kg±0.3kg |
|
|
Volume |
Core drying: 300ml~360ml |
|
Core wetting: 240ml~300ml |
|
|
Between the maximum and minimum tick marks: 200ml~260ml |
|
|
Concentration Range |
Isoflurane: 0-5vol,% |
|
Enflurane: 0-5vol,% |
|
|
Sevoflurane: 0-8vol,% |
|
|
Concentration Accuracy |
±0.25vol,% or set value ±20%,whichever is greater |
|
Packing Information |
|
|
Dimension |
With stand: Height 1230mm X Width 510mm X Length 470mm Without stand: Height 385mm X Width 405mm X Length 265mm |
|
Weight |
≤28kg (include stand, vaporizer and other accessories) |
|
Maximum Load on Top |
10kg |
|
Handle |
Single handle, located in the middle of the top |
|
Environmental |
|
|
Environmental specification |
Temperature: 10~40 ; Relativ e humidity 15%~95% |
|
Storage environment |
Temperature:-20~60 ; Relativ e humidity : 10%~95% |
Standard Configuration
Main unit, one anesthesia vaporizer, one mobile trolley, one set oxygen hose, one set disposable breathing hose, one set waste gas hose, one set breathing bag (with 4 size)
