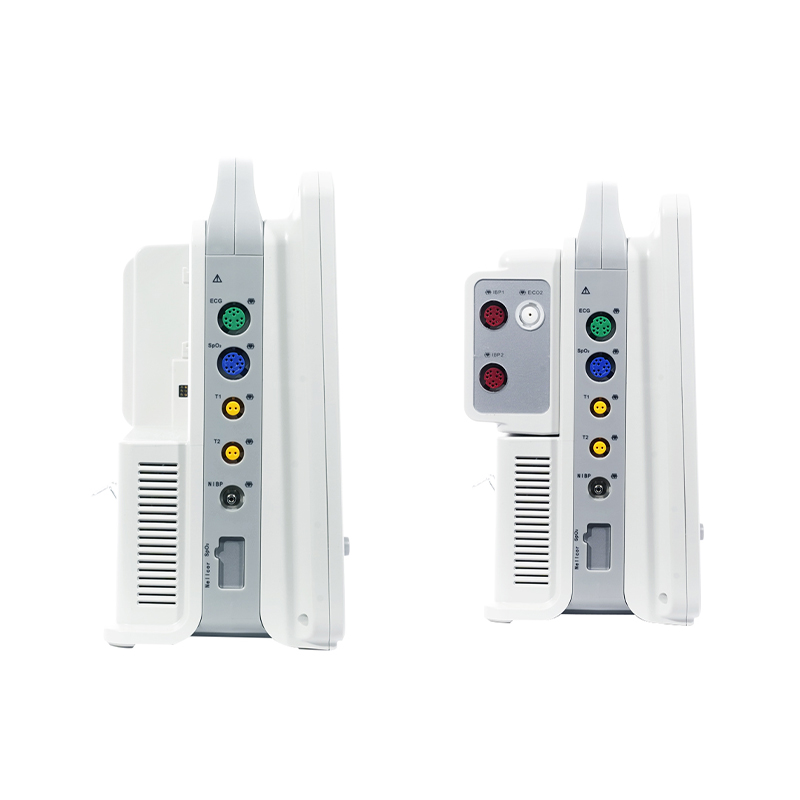

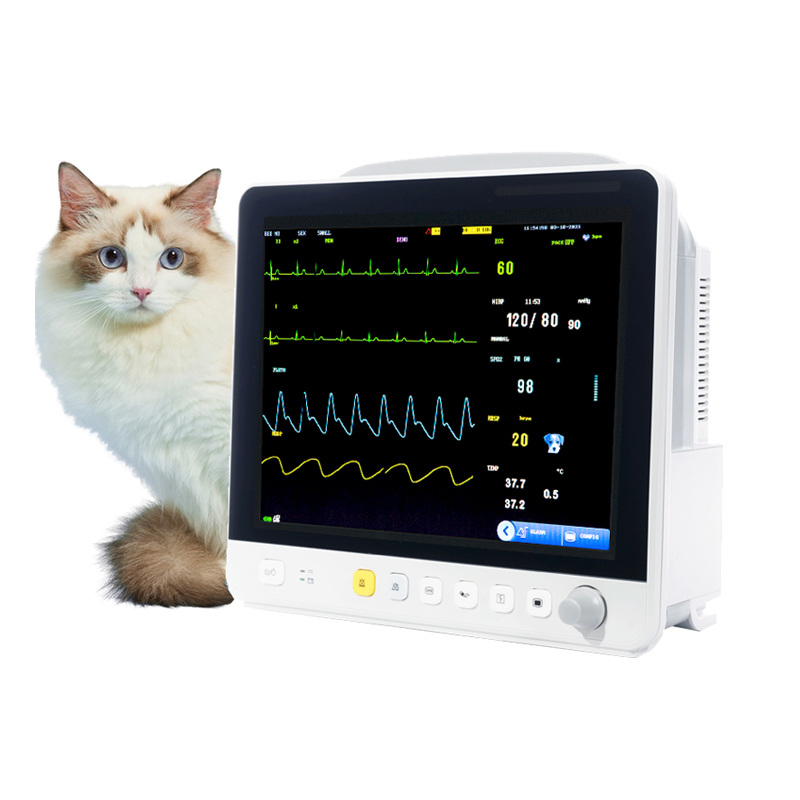

VET-E12
VET Multiparameter Monitor
Product Categories
-
Animal Monitoring & Life Support
-
Operating Theatre Equipment
-
Animal Diagnostic Laboratory
- Automatic Integrated Gene Detection System
- Hematology Analyzer
- Elisa Reader
- Chemistry Analyzer
- Blood Gas Electrolyte Analyzer
- Urine Analyzer
- Biological Safety Cabinet
- Biological Microscope
- Centrifuge
- Medical Pharmacy Refrigerator
- Blood Bank Refrigerator
- Combined Medical Refrigerator and Freezer
- Medical Freezer
- Laboratory Incubator
- Dry Oven
- Pet Rapid Test
-
Sterilizer (Autoclave)
-
Medical Imaging
-
Clinical Examination
-
Dental Equipment
-
Pet Grooming
Contact
Add to List
product description
Features
- 12-inch high-brightness LCD monitor.
- Mirror display, new visual effect, more intimate protection monitor
- Multiple working modes: diagnostic, monitoring, surgical mode.
- Suitable for different groups of pets: large, medium, small pets.
- Multiple display modes: standard, large character, trend graph, blood pressure list, etc
- Support multi-lead display of ECG waveforms on the same screen.
- Equipped with a blood pressure cuff for pets Accurate blood pressure measurement.
- Multiple analysis functions.
- Quick Setup Alarm Function.
- Built-in high-capacity lithium battery, long standby time.
- Suitable for use in a variety of conditions such as operating rooms
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
|
ECG |
||
|
Lead mode |
3/5-lead ECG input |
|
|
Lead selection |
I, I, lI, aVR, aVL, aVF, V |
|
|
Gain |
AUTO, 2.5 mm/mV (x0.25), 5mm/mV (x0.5),10 mm/mV (x1), 20 mm/mV (x2) |
|
|
Support functions |
Support ST, QT and ARR functions |
|
|
Bandwidth (-3dB) |
Diagnostic mode: 0.05-150Hz |
|
|
Monitor mode |
0.5- 40Hz |
|
|
Operation mode |
1~25Hz |
|
|
ST mode |
0.05~40Hz |
|
|
Signal quality display |
Expression way: numerical display and waveform color |
|
|
HR measurement range |
10~400 bpm |
|
|
HR resolution |
1 bpm |
|
|
HR accuracy |
+1% or +1 bpm, whichever is greater |
|
|
NIBP |
||
|
Measurement parameters |
SYS, DIA, MAP |
|
|
Mode of operation |
Manual, Sequence, Auto |
|
|
Unit |
mmHg/KPa |
|
|
Measuring range of cuff pressure |
0~300mmHg |
|
|
Measurement range: |
Big Animal |
SYS:40~270mmHg |
|
DIA:10~215mmHg |
||
|
MEAN:20~235mmHg |
||
|
Medium Animal
|
SYS:40~200mmHg |
|
|
DIA:10~150mmHg |
||
|
MEAN:20~160mmHg |
||
|
Small Animal |
SYS:40~135mmHg |
|
|
DIA:10~100mmHg |
||
|
MEAN:20~110mmHg |
||
|
Static pressure accuracy |
±3mmHg |
|
|
Dynamic Pressure Measurement Error of Simulator |
±5mmHg |
|
|
Pressure resolution |
1 mmHg or 0.1kPa |
|
|
SpO2 |
||
|
Measuring range |
0~100% |
|
|
Sensitivity |
High, Medium, Low |
|
|
Accuracy |
At 70~100%,+2% |
|
|
At 0~69, unspecified |
||
|
Alarm range |
0~100% |
|
|
PR measurement range |
20 bpm~300 bpm |
|
|
PR resolution |
1 bpm |
|
|
PR accuracy |
±1bpm (non-motion conditions) |
|
|
PR alarm range |
0~250 bpm |
|
|
RESP. |
||
|
Measurement parameter |
Respiration rate and respiration waveform |
|
|
Measurement method |
Thoracic Electrical Bioimpedance |
|
|
Measurement range |
Big animal: 0~120 rpm |
|
|
Medium animal: 0~150 rpm |
||
|
Small animal: 0~150 rpm |
||
|
Resolution |
1 rpm |
|
|
Accuracy |
+2 rpm or +2% ，whichever is greater. |
|
|
TEMPERATURE |
||
|
Temp parameter |
T1,T2,TD |
|
|
Measurement site |
Surface and coelom |
|
|
Measuring range |
0°C~50°C (32F~122*F) |
|
|
Resolution |
0.1°C or 0.1° F |
|
|
IBP (OPTIONAL) |
||
|
Measuring range |
-50~300 mmHg |
|
|
Resolution |
1 mmHg |
|
|
Accuracy |
±2mmHg or 2% of the reading,whichever is greater (exclusive of transducer) ±4mmHg or 4% of the reading,whichever is greater (inclusion of transducer) |
|
|
Dynamic |
±4mmHg or 4% of the reading,whichever is greater |
|
|
Unit |
mmHg , KPa |
|
|
Sensitivity of transducer |
5uVN/mmHg, 2% |
|
|
Transducer sites |
ART/PA/CVP/L AP/RAP/ICP |
|
|
CO2 (OPTONAL) |
||
|
Measurement parameter |
EtCO2, FiCO2, a CO2 waveform and awRR |
|
|
Measurement method |
Mainstream, sidestream |
|
|
Unit |
mmHg, kPa and % |
|
|
EtCO2/FiCO2 measuring range |
0% ~ 19.7% (0mmHg ~ 150mmHg) |
|
|
BATTERY |
||
|
Type |
Rechargeable lithium battery, 4000mAh |
|
|
Operating time |
Operating time under the normal use and full charge≥240 mins |
|
|
SIZE & WEIGHT |
||
|
Product size |
303*160*287mm |
|
|
Net Weight |
3.87KG |
|
Standard Configuration
- 3/5-lead ECG, HR, RESP, NIBP, SpO2, PR, TEMP
- Rechargeable lithium battery
Optional Configuration
- 2-TEMP Probe,2-IBP,Suntech NIBP,Nellcor SpO2, Sidestreamor Mainstream EtCO2
- Touch Screen
- Thermal Recorder
- Central Working Station
- Trolley or Wall Bracket
