1. I. Technical Specifications

Power supply: 220V±10%, 50Hz, 1kVA

Tube voltage: 70KVp

Tube current: 8mA

Focus size: 1.5mm/0.8mm

Total filtration: 2.5mmAL

Exposure time: 0.2 to 4 sec

Leak radiation: Outside one meter≤0.002mGy/h

(National standard: 0.25mGy/h)

Package size：144×50×27（cm）

Net weight：50kg



1. II. Feature

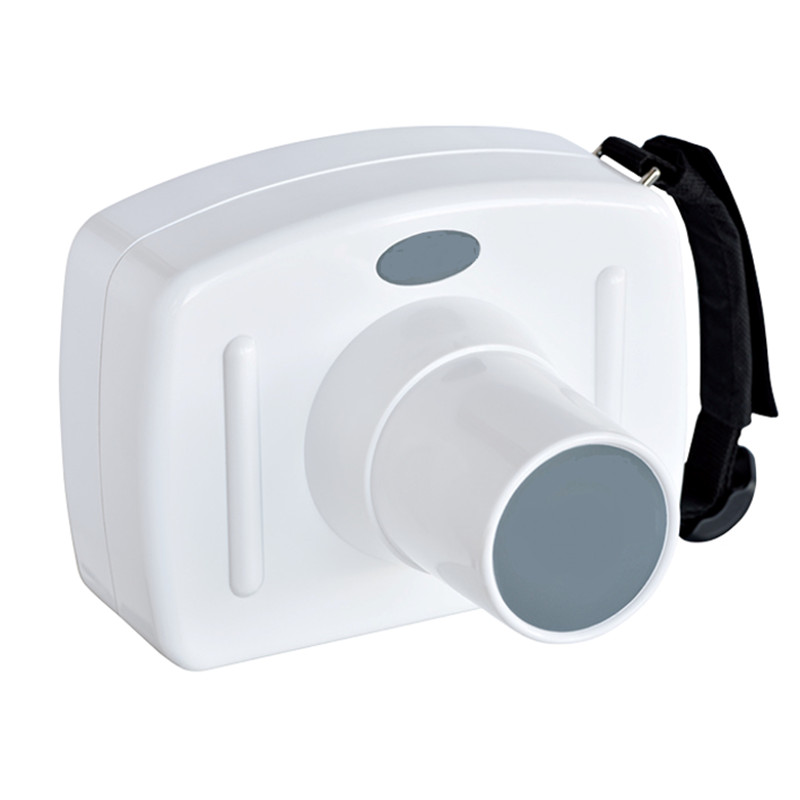

-This portable dental X-ray unit is high frequency machine.

-Using the international advanced technology, efficient integrated design, high efficiency, low radiation.

-Using microcomputer intelligent control, not only remote controlled exposure, but more powerful function of low voltage alarm and high voltage protection.

-Micro focus technology, much clearer image and accurate diagnosis.

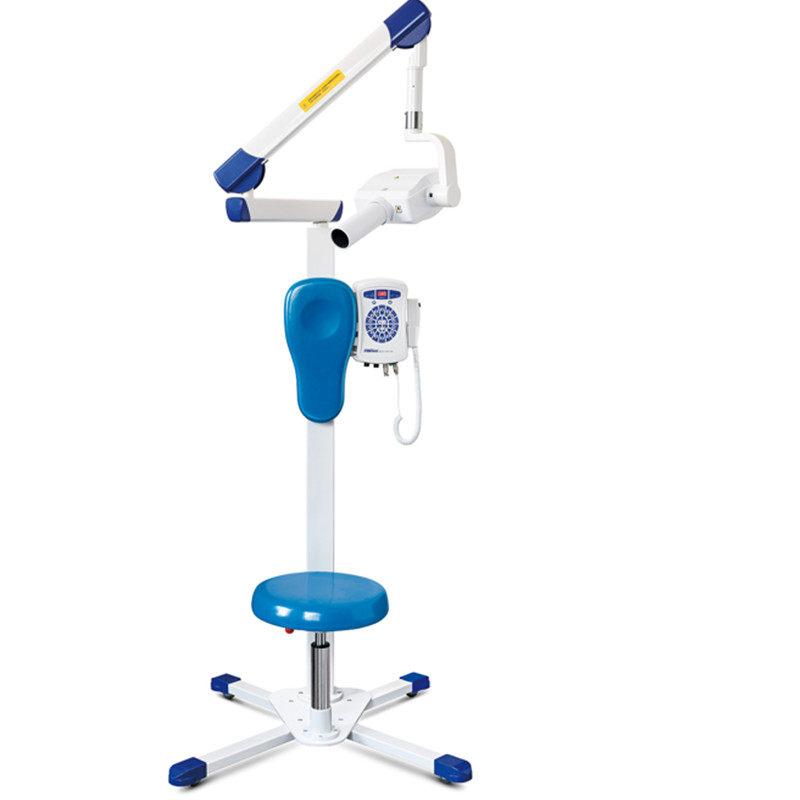

-The base has two modes of mobile and fixed, pneumatic lift seat.

-Can use lightroom dental film, imaging on one minute, maximum convenient dentist to diagnose.

-Digital touch button, simple operation, just press one button can quickly and accurately  determine the parameter, is the ideal assistant for dentist.
