VC-NKX-100

Portable Radiography X-ray System

product description

Features

-It can be widely used in the examination and diagnosis of human limbs, and is suitable for medical institutions such as hospitals, clinics, physical examination centers, ambulances, etc;

-Simple structure, small size, light weight, no environmental restrictions, no need to build a lead shielded darkroom;

– Optional mobile rack is flexible and convenient, which can meet the requirements of different workstations, and can be used as a bedside shooting in a hospital ward;

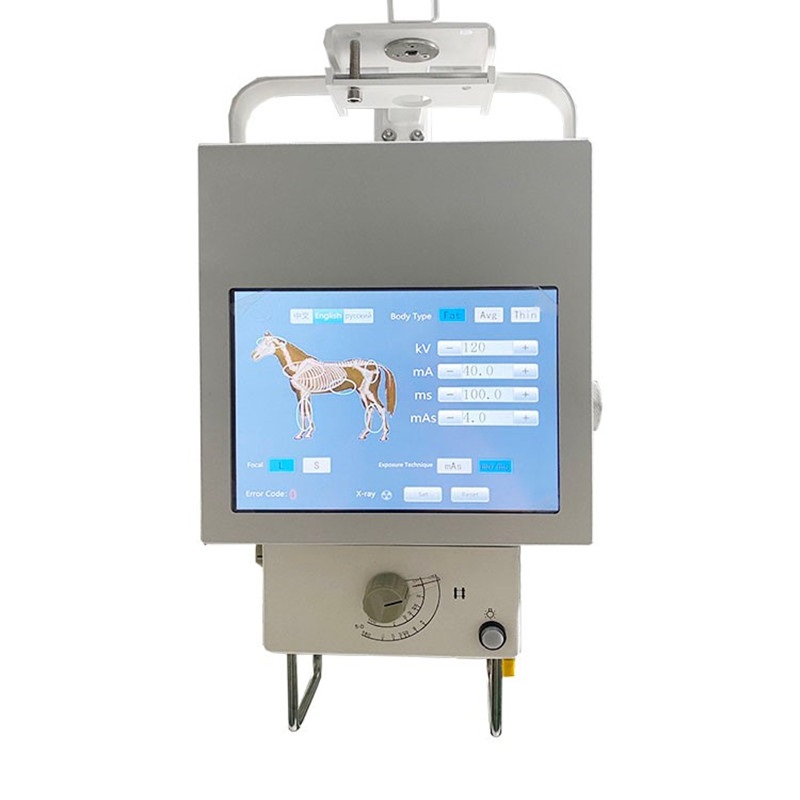

-Three exposure control methods: remote control, hand switch, touch screen;

-Fault self-protection, self-diagnosis, high-precision control of tube voltage and tube current;

Technical Specifications

PARAMETER

SPECIFICATION

Power

5KW

Input power type

220~240VAC

Dimension

265mm(L) x 240mm(W) x 210mm(H)

Weight

15KG

Communication interface

RS-232

kV range

40kV-125kV, 1kV step

mA range

10-100mA

ms range

1 -4000ms

mAs range

0.1-200mAs

Maximum power

5.3kW

X-ray focal point value

Small focus: 0.6; Big focus: 1.8

Maximum tube current of small filament

20mA

Maximum tube current of large filament

100mA

X-ray tube inherent filtration

0.6mmAl

Combination head filter

1.5mmAl

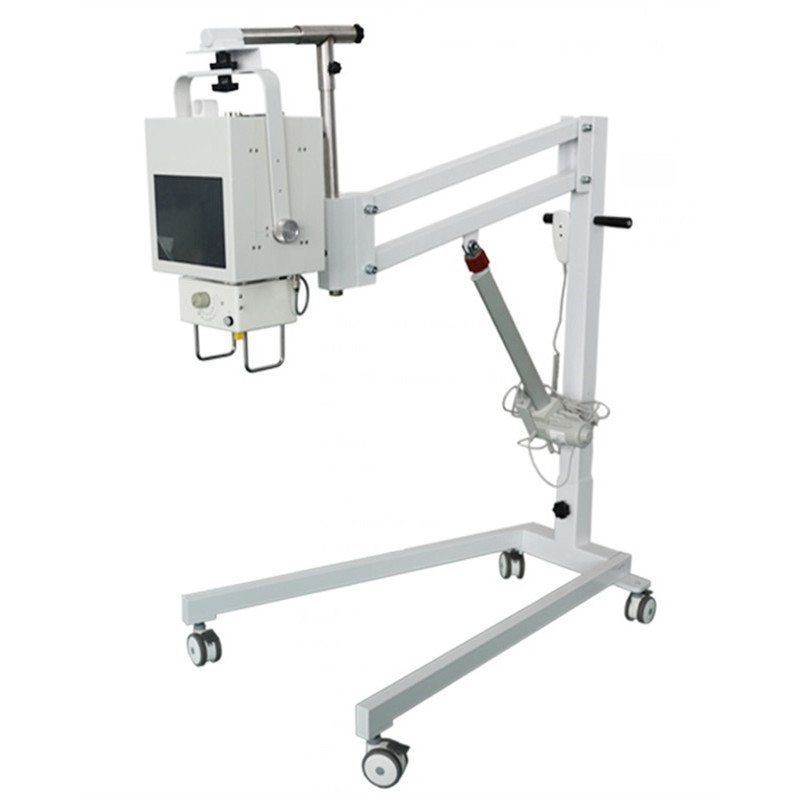

Trolley(Optional)

Net weight 70KG

Maximum height: 200cm

Width 66cm

Adjust 50~200cm

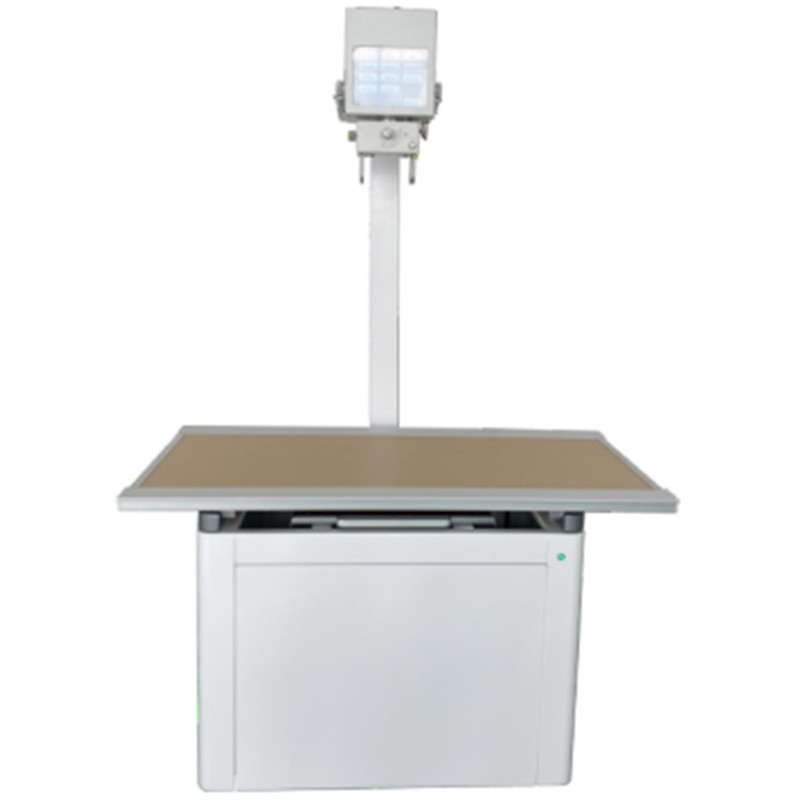

Table(Optional)

Features

-it can be used in conjunction with veterinary X-ray generator and is suitable for pet hospitals at all levels.

-it can take radiography of the head, chest, abdomen, limbs, bones and other parts of the pet when standing, lying and lying on its side.

-the product can be used in large and medium-sized veterinary hospitals or X-ray irradiation clinics, as well as medical research institutions and medical colleges for scientific research and teaching.

-the equipment is equipped with cassettes, which can place Cr, Dr and IP boards of different sizes;

-the desktop can float in four directions and can be locked electromagnetically.

Technical Specifications

PARAMETER

SPECIFICATION

 Bed material:

Acrylic plate

Bed size

1360mm×720mm

Bed height:

830mm

Column height:

1910mm

Horizontal movement distance of bed surface:

260mm

Vertical movement distance of bed surface:

120mm

Overall dimensions:

1360mm×720mm×1910mm
