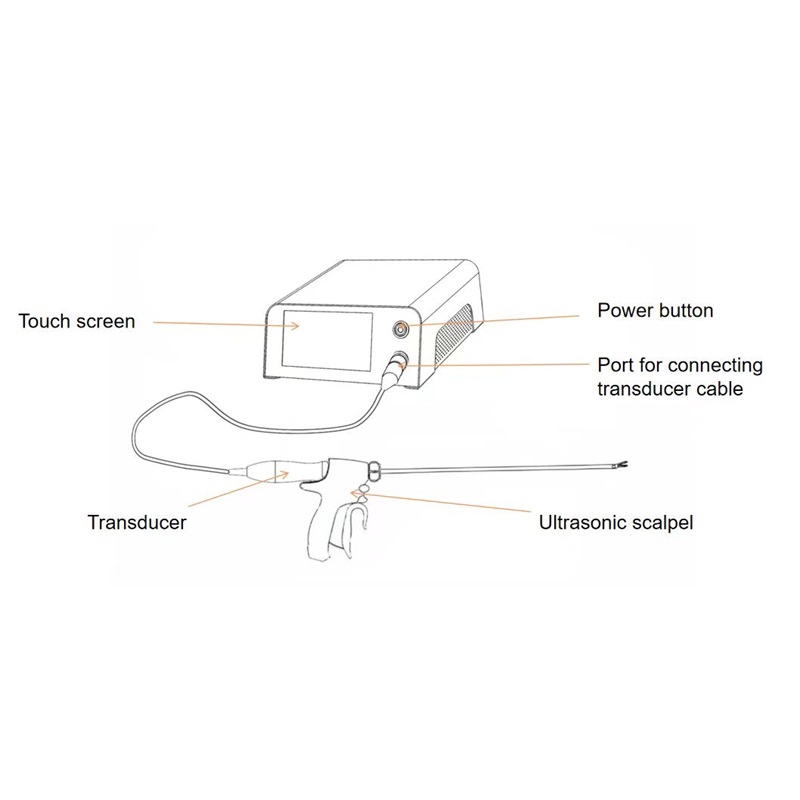

Product Introduction

-Ultrasonic Surgical System is widely applied in soft tissue surgery and minimally invasive surgery.

-Sharp cutting and quick coagulation with less lateral thermal tissue damage and blood loss.

-No electricity passing through the patient’s body during surgery; it can be applied on patients who wear cardiac pacemakers.



Features & Benefits

Disposable scalpel head, each can be used for about 5 surgeries under correct operation.

Maximum Continuous Trigger Time: 15 seconds.

Double Coating Blade.

Multi-function: Hemosatsis, Cutting, Dissection

High-performance compression energy.

Auto record trigger times in system and display on touch control monitor.

Pluggable function, which means plug in or out generator without power off



Operation Cautions

1. When removing the special wrench, keep the clamp arm closed.
2. In the process of tuning and using, ensure that the tool working end does not touch the hard objects such as the metal container wall or other surgical instruments.
3. When the screen shows tuning Failure, check whether the transducer cable is connected and resume the tuning process.
4. When the tool is damaged, please replace the new tool.
5. When disinfecting and soaking, only soak the metal part. DO NOT SOAK THE PLASTIC HANDLE because there is a circuit inside. It will cause short-circuit if the handle is soaked.
6. The red cap in front of the handle MUST BE PUT ON before disinfection because any liquid seeps into the handle might damage the circuit inside.



Technical Specifications

Components & Description	Quantity
1.    Blade and Shaft (Disposable) Blade Material: Titanium Alloy, Nanometer Double Coating, Curved Shaft Length: 14cm, 23cm, 36cm Frequency: 55.5kHz ±2kHz Continuous Trigger Time (Max): 15 seconds Sealed Vessel Diameter (Max): 5mm	1 unit

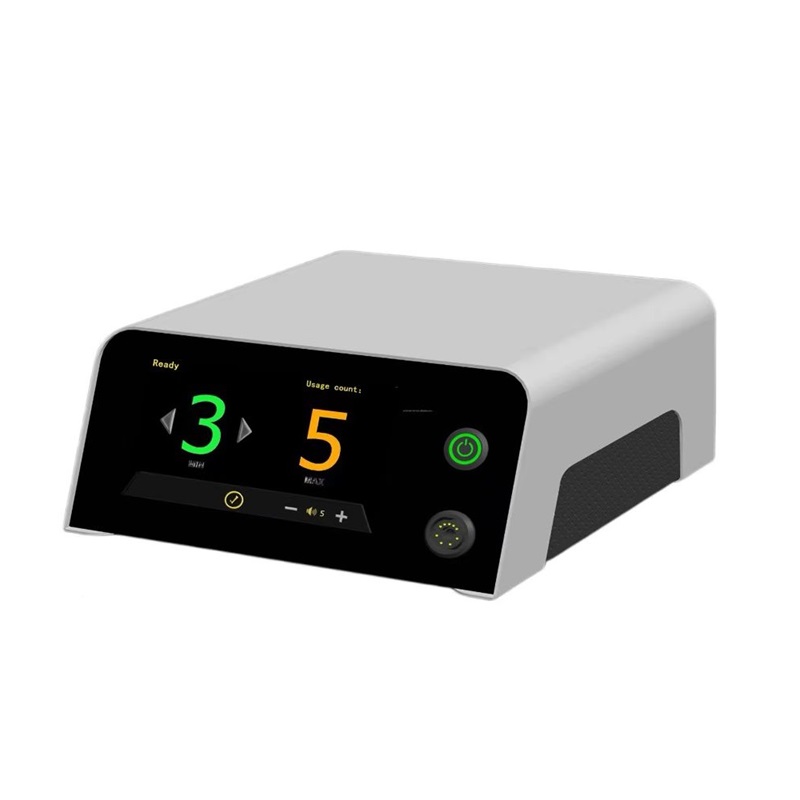

2.    Generator Tissue Auto-adaption Pluggable Function System Booting Time: 8 seconds Toning Time: 3 seconds Mains Voltage and frequancy: 220V, 50Hz Max. Power Consumption: 150V Output Frequency: 55.5kHz±2kHz	1 unit
