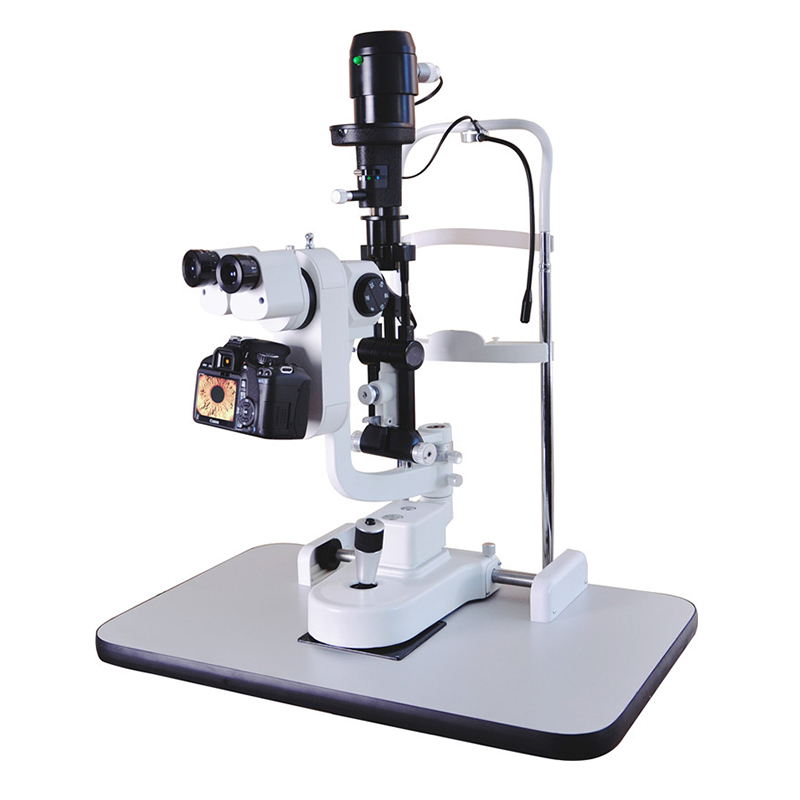

VME-5DI

Vet Slit Lamp

product description

Description

Galilean unparalleled Optical give this slit lamp high depth of field view.

Drum rotation makes 5 steps magnification convenient to shift

The bulb and optical lens made of glass are imported from Germany.

All the lens are multi-coated, mildewproof and anti-reflection.

All the adaptors are universal.



Technical Specifications



PARAMETER

SPECIFICATION

Microscope Type

Parallel Stereoscope

Magnification

Five steps magnifications

Eye piece

12.5x

Total Magnification and Diameter of Visual Field(mm)

6x, 10x, 16x, 25x, 40x

Adjustable Range of Pupil Distance(mm)

55~75

Adjustable Diopter

-5D~+5D

Slit Width(mm)

0-9 adjustable or 0-14 adjustable

Slit Height(mm)

1~9 adjustable or 1-14 adjustable

Slit Angle

0~180°

Slit Inclination

5°, 10°, 15°, 20°

Light Spot Diameter (mm)

 Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2 Or Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2

Filters

Heat Absorption, Grey, Red Free, Cobalt Blue

Illumination Bulb

12V / 30W or 12V/50W halogen bulb

Voltage/frequency

AC220V,50Hz or AC110V, 60Hz

Power

 60VA

Electrical Safety Standard

Conform to Standard IEC 601-1.Class1Type B

Whole Packing Volume

 0.30m3

Carton Number

 2

Total Weight

46kg

Standard:

5D Slit lmp, beam splitter & Adapter, Camera
