Features

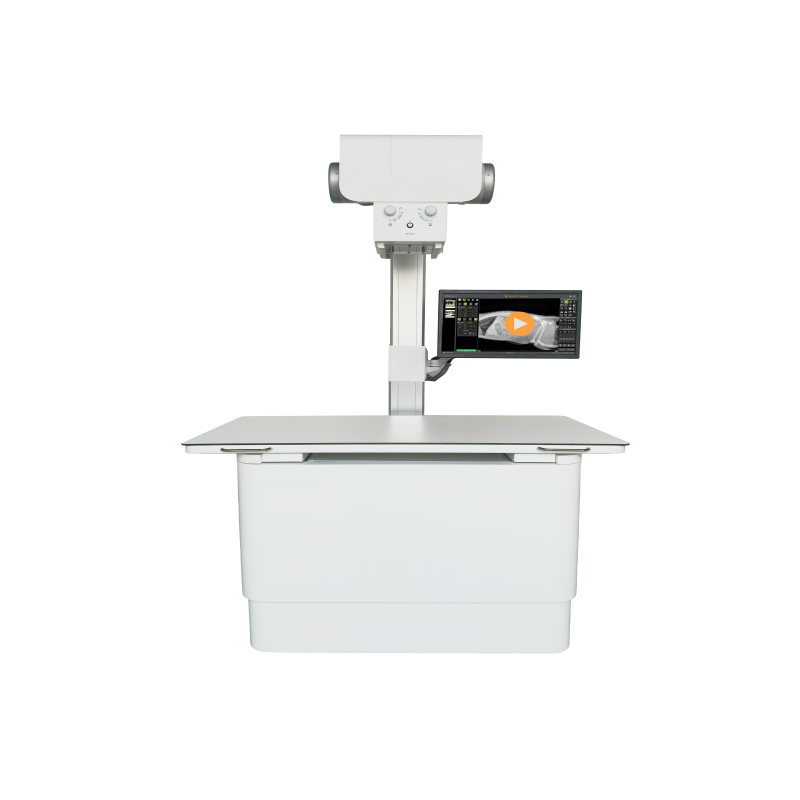

V-DRF30 is professional veterinary Dynamic Digital Radiography system, is designed to offer quality and safe X-ray images and live X-ray video fluoroscopy for animal diagnosis.
V-DRF30 developed specifically with veterinarians and their work flows in mind, is a combination of mobile DR system and C-arm system(2-in-1), enabling the veterinarians to enjoy powerful output in X-ray room and conveniences diagnosis in operating room.
-Compact design for mobile deployment in both DR room and operating room
-User friendly large-size touch-screen operating console
-Seamless switching between radiography and video fluoroscopy modes
-4-way floating table to facilitate patient positioning
-Full 17″ ×17″ imaging area with industry-leading image quality
-Low-dose ultra-high-frequency generator to reduce scattered radiation
-Smart ABS with pulsed & continuous fluoroscopy for ultra-low patient radiation exposure
-Adjustable SID and rotatable X-ray tube for multi-angle radiographic shooting
Technical Specifications
|
PARAMETER |
a-Si TFT Dynamic Detector |
|
|
Pixel Size |
139μm |
|
|
Pixel Matrix |
3072 x 3072 |
|
|
AD Conversion |
16 bits |
|
|
Spatial Resolution |
3.6 lp/mm |
|
|
Imaging Area |
430mm × 430mm (17” x 17”) |
|
|
Dimension |
460mm x 460mm x 15mm |
|
|
Weight |
4Kg |
|
|
PARAMETER |
X-ray Generator Features |
|
|
High Frequency |
250 KHz |
|
|
Single Phase |
220/240VAC 32 KW |
|
|
Output Power |
400 mA and 150Kv |
|
|
X-ray tube H.U. continual monitoring for X-ray tube protection |
||
|
Kvp Radiographic range |
from 40 to 150 Kvp |
|
|
mA Radiographic range |
from 10 to 400 mA |
|
|
Anatomical program APR (Kvp, mAs, AEC, focal spot, etc) |
||
|
Dual Switch (Foot and Hand-Switch) for preparation and exposure |
||
|
PARAMETER |
X-ray Tube |
|
|
Canon(Toshiba) |
E7239X |
|
|
Maximum Tension |
125 kV |
|
|
Focus sizes |
Small focus 1.0 mm, Large focus 2.0 mm |
|
|
Anode target angle : |
14 º |
|
|
Anode Rotation |
2700 |
|
|
PARAMETER |
Manual Collimator |
|
|
Manual collimator with 6 pair of leafs |
|
|
|
Accessory rails (cones, |
||
|
Field LED lamp of 160 LUX |
||
|
Light indicator for alignment with Bucky |
||
|
Retractable measuring tape |
||
|
PARAMETER |
Workstation and S/W (B-Console vet) |
|
|
Preview & Post processing Time : 3 sec |
|
|
|
KV, mA, mAS, Thumb nail View, patient Info and so on |
||
|
Main Screen Console: Veterinary patient information |
||
|
Automatic Pre & Post image enhancement. |
||
|
Expands image processing for optimized viewing |
||
|
Enhances variable density and form shading |
||
|
Variety Measurements |
||
|
Application measurements & teaching tools (such as VHS, HD, TPLO, TTA etc) |
||
|
One key to capture images into Clipboard |
||
|
DICOM sending and Report writing and Printing |
||
|
Easy Calibration & User setting |
||
|
Added Value of Live X–ray Video Fluoroscopy |
|
The V-DRF30 can switching between digital X-ray and live X-ray Video fruoroscopy mode without any adjustment to your patient, moving between X-ray room and operating room freely. Plenty of new Applications with live X-ray video fluoroscopy beyond digital X-ray. |
|
‑ Evaluating urinary issues ‑ Studies of soft-tissue or ligament damage ‑ Detecting small fractures ‑ Diagnosing tracheal collapse ‑ Investigating potential jaw or skull fractures ‑ Diagnosing a hernia ‑ Orthopedic conditions ‑ Swallowing / Esophageal studies |
|
V-DRF-30 Dynamic DROC acquisition software |
|
– Imaging and annotation tools – Professional measurement tools (Norberg Angle、TPLO、TTA、TTA2、VHS Scaling、Hip Distraction etc) – Powerful user features – Live video and Review compatible – Dedicated Veterinary report templates – Supported by email, print out, or DICOM |
